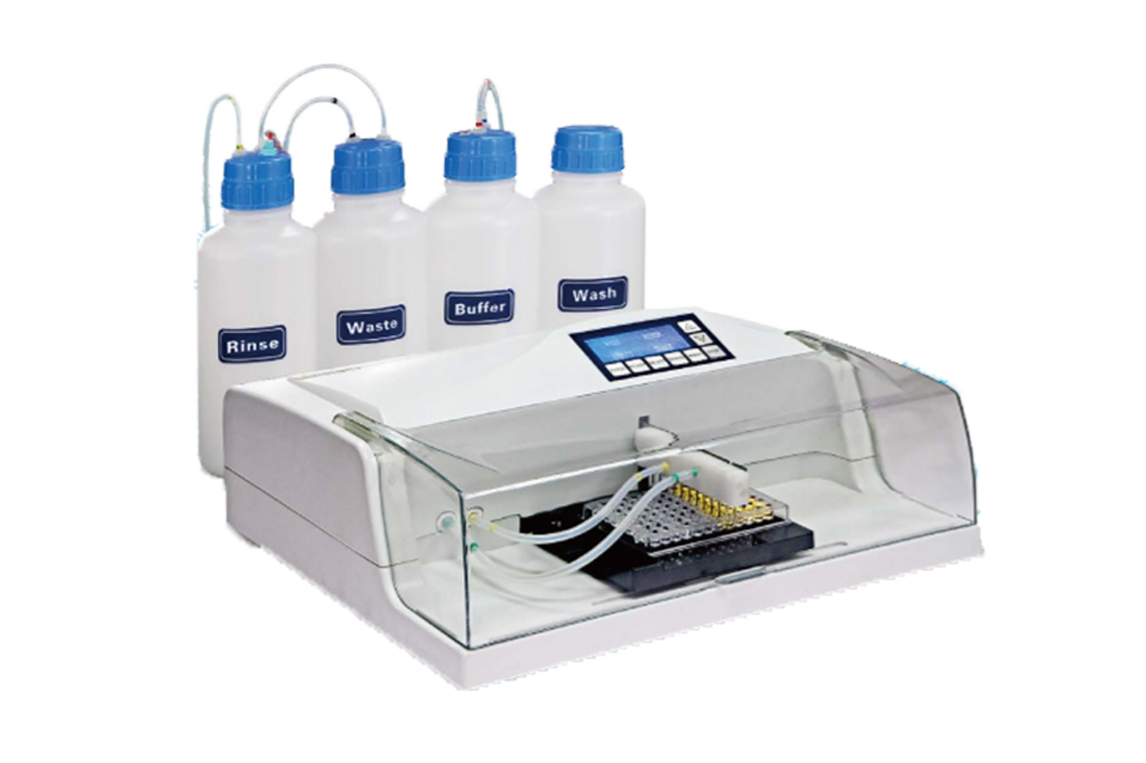

Microplate Washer (DKW-320)
Main Features
- Large LCD display, menu designed for convenient use.
- Whole plate washing or single strip washing.
- 12-way and 8-way manifold included.
- Low residual volume bt two pipettes.
- Complete bottom washing.
- Shaking and dipping function.
- Automatic monitoring of vacuum and pressure, automatic rinse cycle.
- Flat, V-bottom or U-bottom plate and strips.
- Large memory to store up to 48 user programmed wash protocols.
- Emergency stop available and liquid warning.
Technical Specification
- Input
- Display
- Manifold
- Wash Mode
- Wash Strips
- Applicable Well
- Washing Times
- Dipping Time
- Shaking Time
- Residual Volume
- Liquid Volume
- Sipping Time
- Storage Capacity
- Power Supply
- Dimensions
- Net Weight
- Oparating Environment
- : 8key membrane keyboard
- : High brightness LCD display screen
- : 8 pins and 12 pins
- : Strip mode and plate mode
- : 1~12 adjustable
- : Flat, V-bottom or U-bottom
- : 0~99 times adjustable
- : 0~3600 adjustable
- : 0~600 adjustable
- : ≤µl / well
- : 50~3000 µl / well
- : 0.1 ~ 9.9S
- : More than 100 user defined wash board procedures
- : 198 ~ 242V, 49 ~ 51Hz
- : 448(L) X 382(W) X 163(H) mm.
- : 8kg.
- : Temperature 5°C~40°C Max, Humidity 80%
